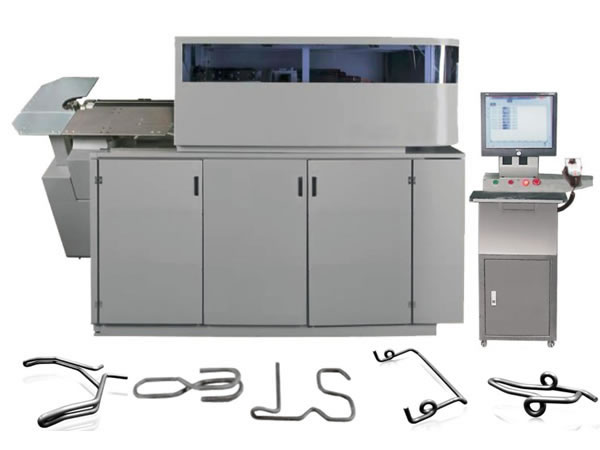

CNC 3D Wire Bending Machine

Main Features
1. High speed, each bending process cost 1.0-1.5 second
2. Heavy bending capacity for wire up to 10mm diameter (customized)
3. This CNC wire bending machine is equipped with servo motor and air compressor as driven power to instead hydraulic pressure, thus keeping the machine clear and easy to maintain.
4. With friendly operation interface, easy to programme, push the button to achieve completed complex bending process
5. With CNC 3D control system, AC servo motor driven, to ensure production has same good quality.

Main Technical Data of CNC 3D Wire Bending Machine

Item		Specifications
Item		NT80-7A	NT100-7A
Applicable wire diameter	600N/mm²	Φ2-Φ8mm	Φ4-Φ10mm
	1200N/mm²	Φ2-Φ5mm	Φ4-Φ6mm
	1900N/mm²	Φ2-Φ4mm	Φ4-Φ5mm
Quantity of feeding reel		3 units	4 units
Wire bending angle		Limitless	Limitless
Platform lifting height		+25mm to -120mm	+25mm to -120mm
Lifting height of head for wire twisting		+25mm to -180mm	+25mm to -180mm
Lifting speed		15m/min	15m/min
Distance between cutting shaft and head for angle bending		105-210mm, fixed	105-405mm, adjustable
Distance between head for angle bending and machine body		400-700mm(fixed)	400-900mm, adjustable
CNC axis quantity		7 axis	7 axis
Machine dimension		3500×1200×1500mm	3500× 1070×1200mm
Machine weight		About 3500kg	About 4800kg
