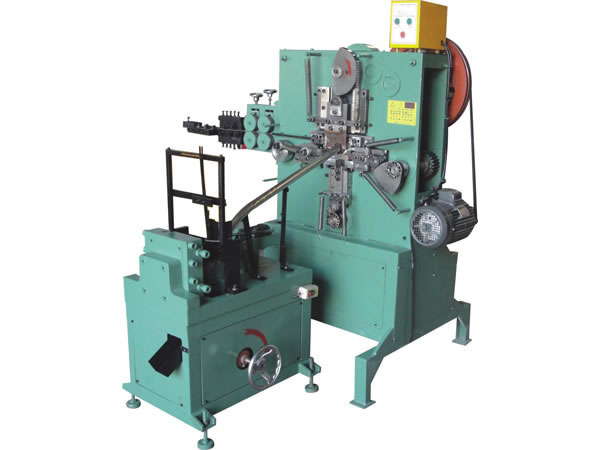

Hangar Hook Bending Machine

Description of Hanger Hook Bending Machine
This hangar hook bending machine combines the functions of hook forming and hook end threading together. Generally one end is threaded, and the other end has two shapes (one shape is bended, the other is cold headed). Different shape and different heading treatment can be achieved by changing moulds.

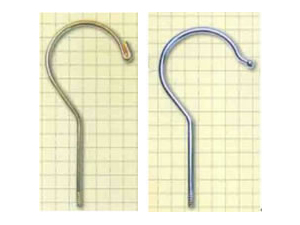

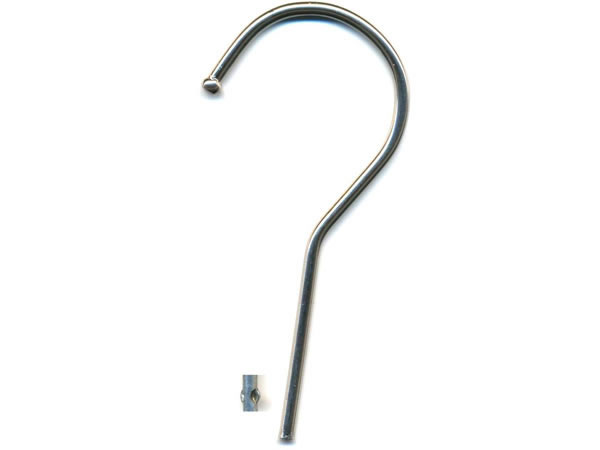

When the hook likes below picture, then there need a separate press plus heading tool to form the heading end. This process is done separately after hook is bent:

Technical Parameters of Hanger Hook Bending Machine

Item HHBM30 HHBM43
Applicable material Galvanized steel wire, carbon steel wire
Wire diameter 1.5-3.0mm 2-5mm
Max. wire length 160mm 160mm
Production speed 40-50pcs/min 25-30pcs/min
Main motor power 1.5kW 2.2kW
Dimension 1360×1070×1980mm
Weight About 400kg

Technical Parameters of Threading Machine

Item HFR30 HFR43
Applicable material Galvanized steel wire, carbon steel wire
Wire diameter 2-3.0mm 2-4.3mm
Production speed 25-30pcs/min 25-30pcs/min
Main motor power 2.2kW 2.2kW
Dimension 1480×1000×680mm
Weight About 200kg
