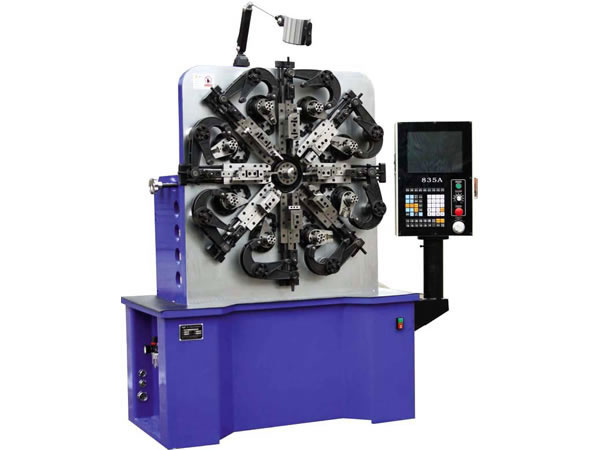

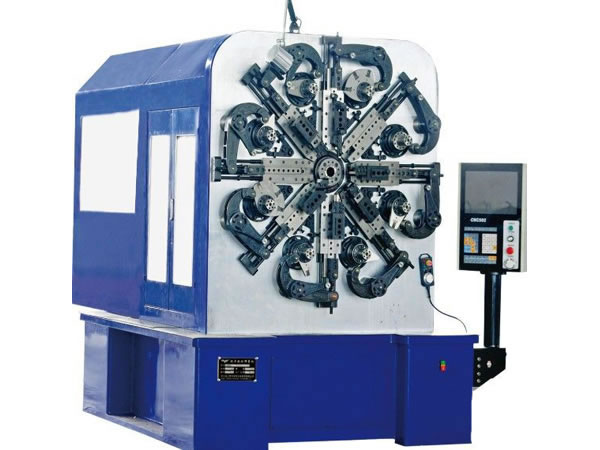

CNC Spring Coiling Machine

Inquiry Form

Description
The CNC spring coiling machine can be construction with two axis, three axis, four axis and six axis. Therefore, it is suitable to produce different kinds of springs with our spring making machine.

Features
1. The CNC spring forming machine adopts CNC control system and servo motor from internationally famous suppliers.
2. Thanks to the high precision detection device, the CNC spring coiling machine will stop automatically in case unqualified spring is detected.
3. Both the outer diameter and the angel of spring can be revised in real time according to the working condition displayed on HMI.
4. The forced lubricating system is conducive to the improvement in the product quality.
5. Our spring coiling equipment will stop automatically if the raw material gets broken or tangled.
6. Automatic acceleration of feeding unit.

Technical Parameters of CNC Spring Coiling Machine

Item ZH-822A ZH-835A ZH-845 ZH-850 ZH-860A
Applicable wire Steel wire mm 0.2-2.5 1.0-3.5 1.0-4.2 1.5-5.0 2-6
Iron wire 0.5-3.0 1.0-4.5 2.0-6.0 2.0-7.0 3.0-8.0
Max. spring OD mm 60 80 80 80 80
Feeding pitch mm 0.01-9999.99
Feeding speed m/min 0-110
Cam rotating angle ° 0.1-359.9
Cam speed rpm 0-60
Feeding servo motor kW 2.7 4.4 5.5 7.0 7
Cam servo motor kW 2.7 4.4 5.5 7.0 7
Servo motor for rotation kW 0.75 1 1.5 2.0 1.5
Machine dimension L mm 1055 1320 1320 1520 1320
W 560 730 730 830 730
H 1540 1720 1720 1920 1720
Weight kg 880 1800 1900 2600 5800

There are many other kinds of high-speed spring coiling machine for your selection. In addition, customized service is warmly welcomed.

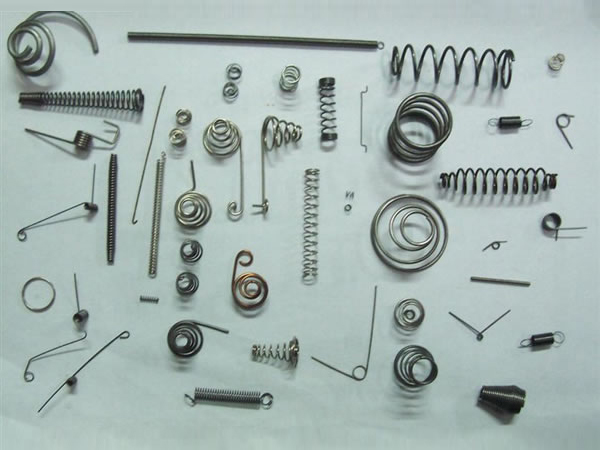

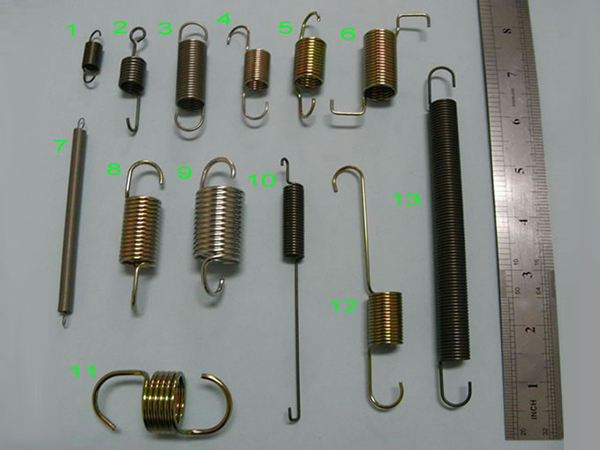

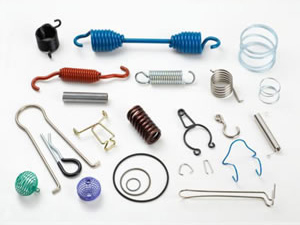

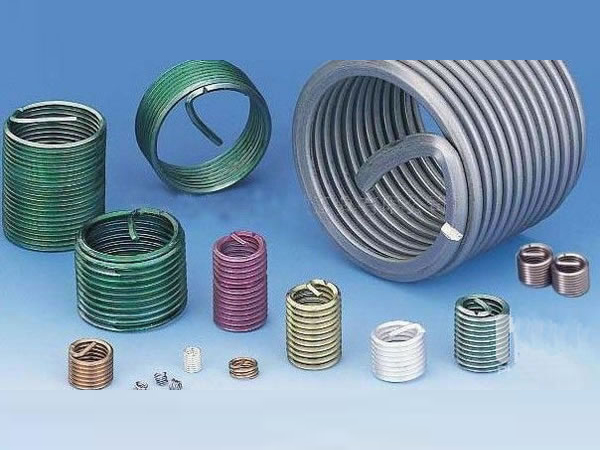

Springs Display
